RESISTANCE/CAPACITANCE DECADE BOX

$250.00 $190.00

Out of stock

Description

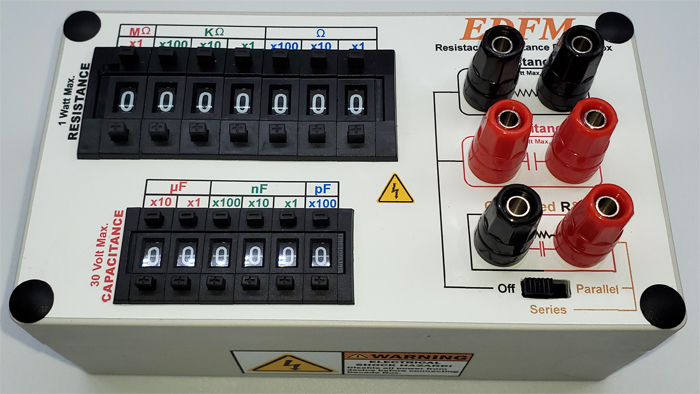

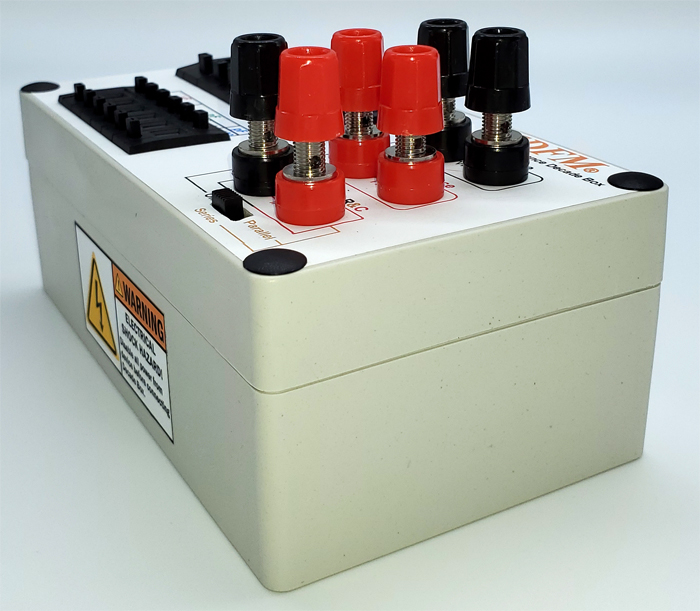

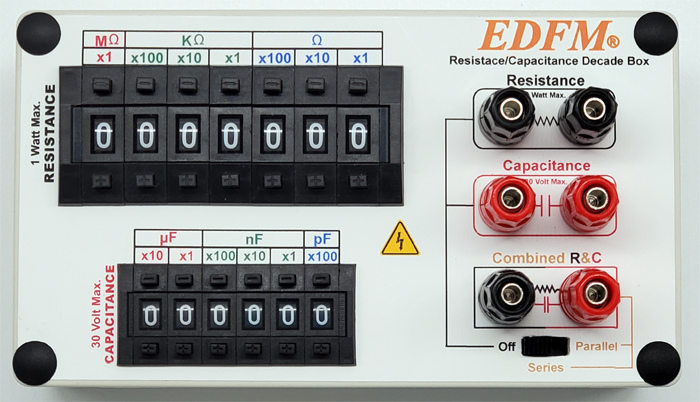

EDFM’s RESISTANCE CAPACITANCE DECADE BOX

EDFM’s new combo Decade box features 7 Decade Switches for resistance and 6 Decade switches for capacitance. Both can be used independently or also has the ability to combine both resistors and capacitors to create an RC network that can also be connected in series or parallel via three way switch. Great for quickly dialing in the values needed for your circuits that uses an RC time constant such as timers, oscillators, frequency generators, filters, radios and more. The unit also comes with 6 banana plugs for creating your own connection leads (3 black, 3 red).

SPECS:

Case 6.22 x 3.54 x 2.36 in.  (158mm x 90mm x 60mm)

6 Banana plugs (3 black, 3 red) solder or solderless connection. Has through hole for inserting multimeter probes.

Durable Waterproof Vinyl Graphics

Resistance:

7 Decade Pushbutton Switches

1 ohm – 9.999999M

1 Watt Metal Film Resistors

Power Rating 1 Watt

Tolerance 1%

Internal Resistance 1 ohm

Capacitance

6 Decade Switches

100pF – 99.9999uF

50 Volts Max

Tolerance 5-10%

Residual Capacitance 30pF

Non-Polarized Capacitors

MADE In The USA

Additional information

Weight 16 oz
Dimensions 8 × 5 × 5 in
