6 DECADE CAPACITANCE BOX

$69.00

Only 1 left in stock

Description

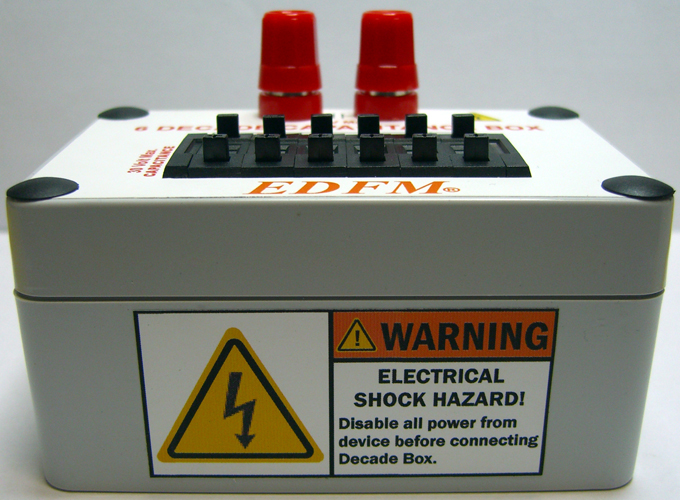

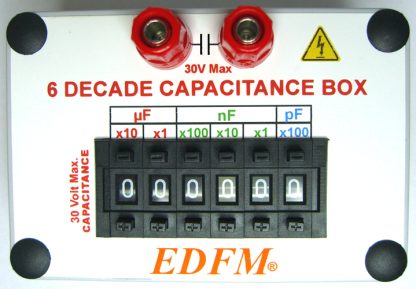

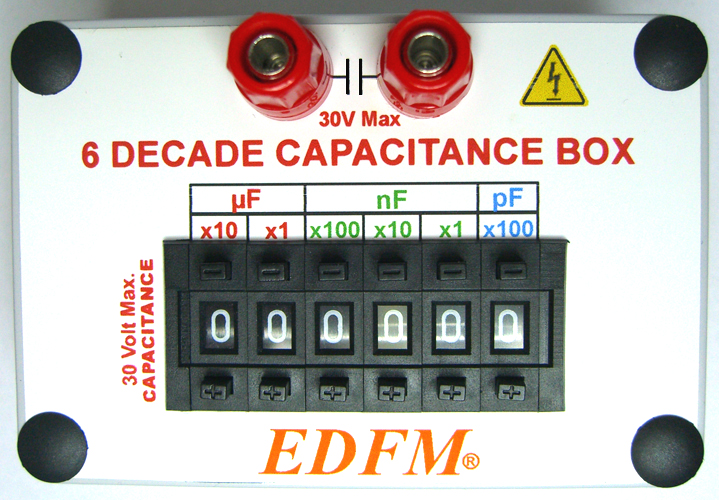

EDFM’s 6 Decade Capacitance Box is the perfect affordable solution for designing, prototyping, diagnostics of circuits, engineering and more of your electronic projects. Six quick select pushbutton switches allows fast selection of capacitor values. The unit has a capacity range of 100pF – 99.9999uF. The electronics are housed in an static free thick wall strong plastic enclosure. The unit also comes with 2 banana plugs for creating your own connection leads (2 red).

SPECS:

Thick-Wall Case 3.9 x 2.65 x 1.94in.  (99 x 67.31 x 49.28mm)

2 Banana plugs (2 red) solder or solderless connection. Has through hole for inserting multimeter probes.

Durable Waterproof Vinyl Graphics

Capacitance

6 Decade Switches

100pF – 99.9999uF

pF capacitance selected in 100 pF increments

nF capacitance selected in 1 nF increments

uF capacitance selected in 1 uF increments

30 Volts Max

Tolerance 5-10%

Residual Capacitance 30pF

Non-Polarized Capacitors

MADE In The USA

Additional information

Weight 8 oz
Dimensions 6 × 4 × 4 in
