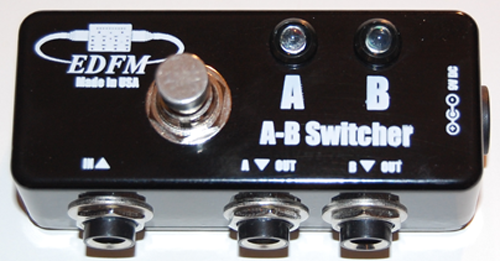

The A-B Switcher is built in the same pedalboard friendly low profile metal housing as the EDFM Tremolo and Interruptus Signal Kill pedal’s, (3.66″ x 1.52″ x 1.25″ ).

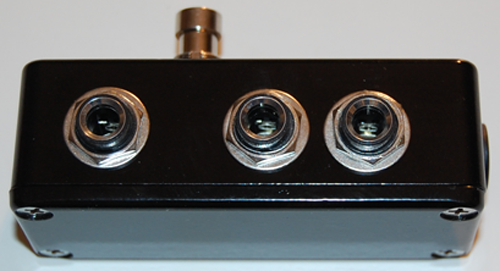

Features a single 1/4″ input with dual switching 1/4″ outputs.

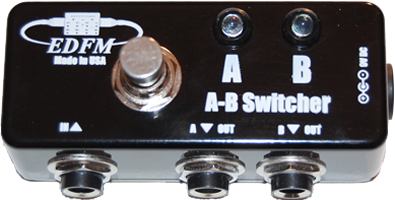

Corresponding red and green LED’s indicators for quick visual reference of which output is selected.

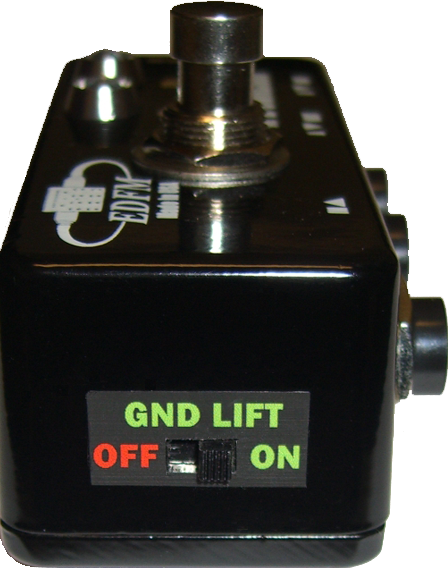

Ground Lift switch to help eliminate horrendous noise caused by ground loops.
Powers from standard 5.5mm x 2.1mm barrel style power connector (Not Included) or two CR2032 button cell batteries.
Power is not needed for unit to function as a switching pedal. Power is only needed for the LED’s to operate.

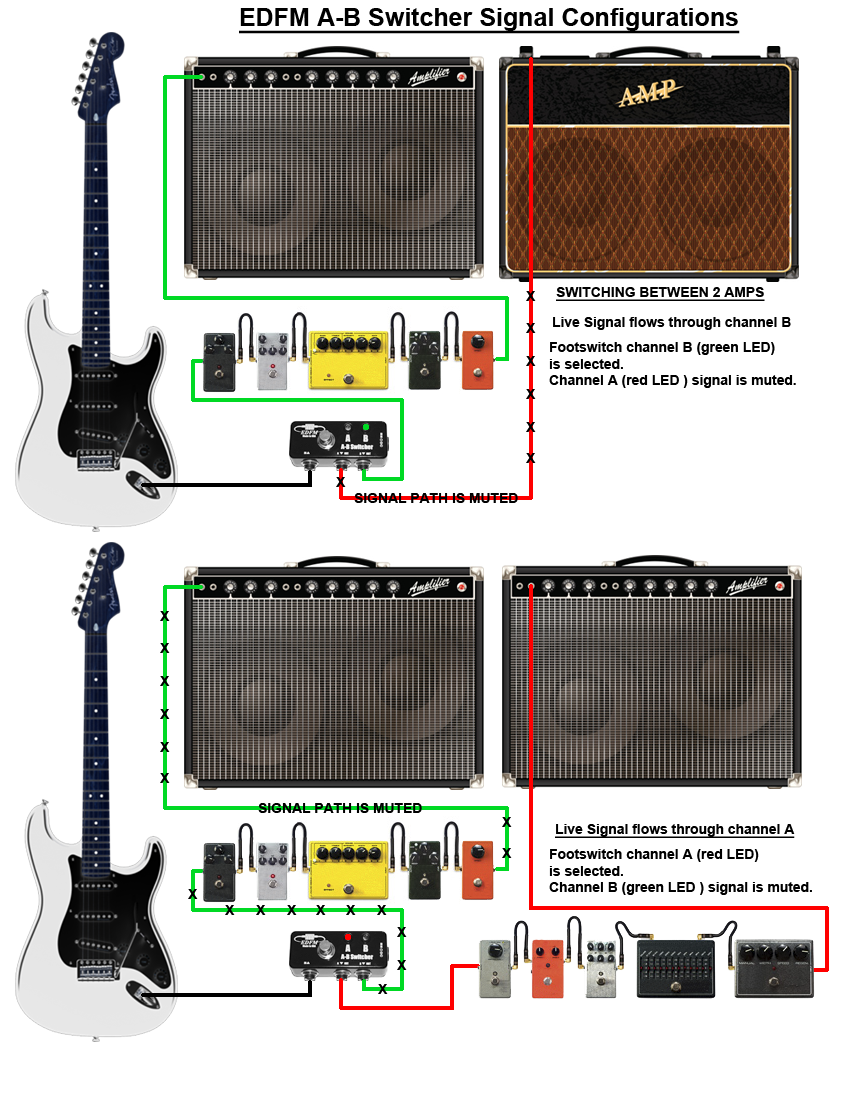

Perfect for switching between two amplifiers .
Other Great uses for the new EDFM A-B Switcher pedal.
- By leaving one output open (unused) it becomes a mute switch.
- Connect a tuner to one of the outs to eliminate it from the live signal chain for quiet tuning.

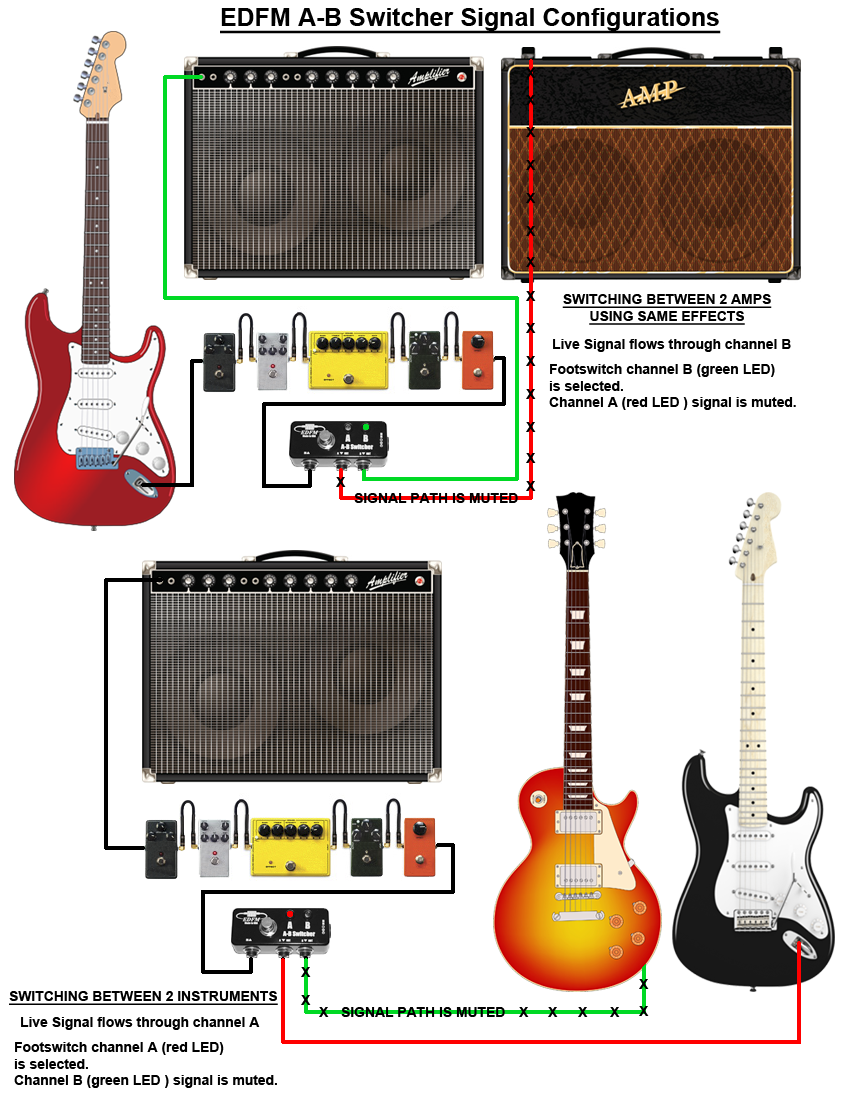

- The EDFM A-B Switcher can be used in reverse mode meaning use the two outputs as inputs and the input as the output, for example connect two separate guitars to the A & B out jacks and the in jack to your amplifier or effect signal chain for fast guitar swaps.
Like all EDFM pedals the A-B Switcher is housed in a heavy duty metal powder coated enclosure for durability.
Comes with a one year limited warranty.
